Overview
The same fuselage supports contra and single drive configurations. No side thrust is required.
Specifications
- Wingspan
- 1900 mm
- Length
- 2000 mm
- Wing area
- 65 dm²
- Stabilizer area
- 18.5 dm²
- Spinner diameter
- 82 mm
- RC system
- 6 ch / 5 servos / 1 ESC
- Center of gravity (CG)
- 280–320 mmFrom the wing-root leading edge.
- Net weight (ARF)
- 2100 g
- Designer
- BJ PARK
- Manufacturer
- BJ CRAFT
Recommended equipment
- Aileron servo
- ≥6 kg × 2
- Elevator servo
- ≥3 kg × 2
- Rudder servo
- ≥4 kg × 1

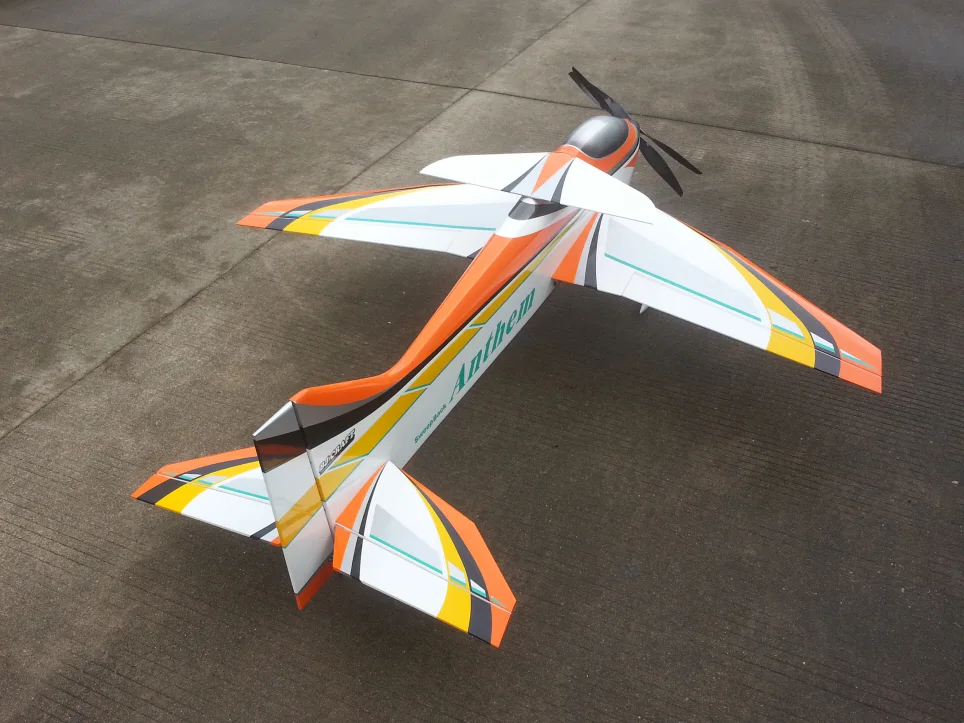

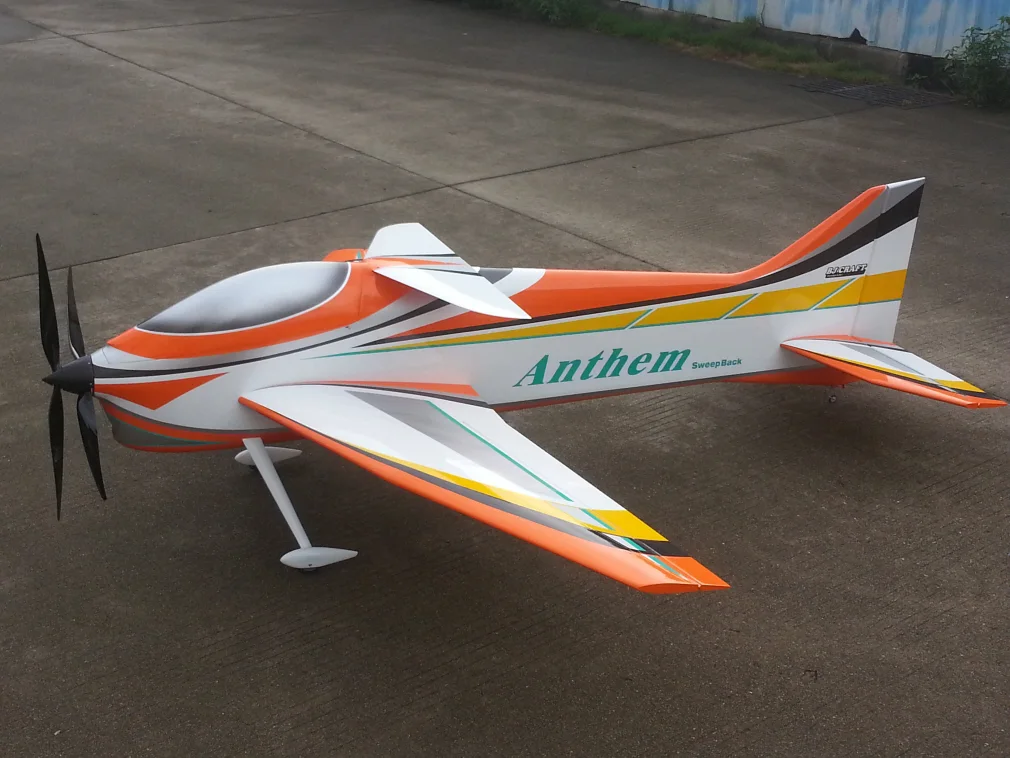

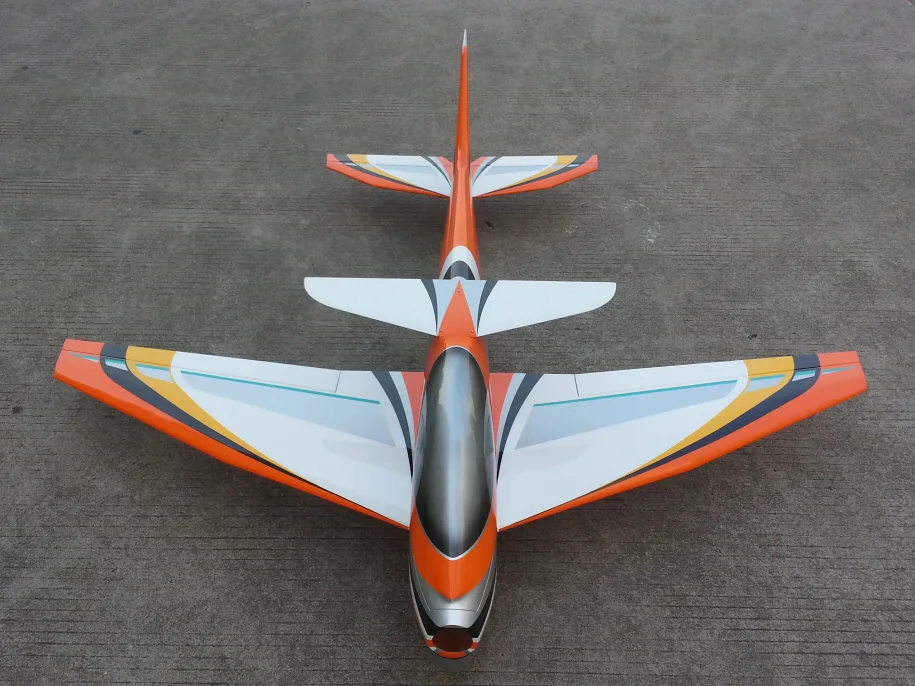

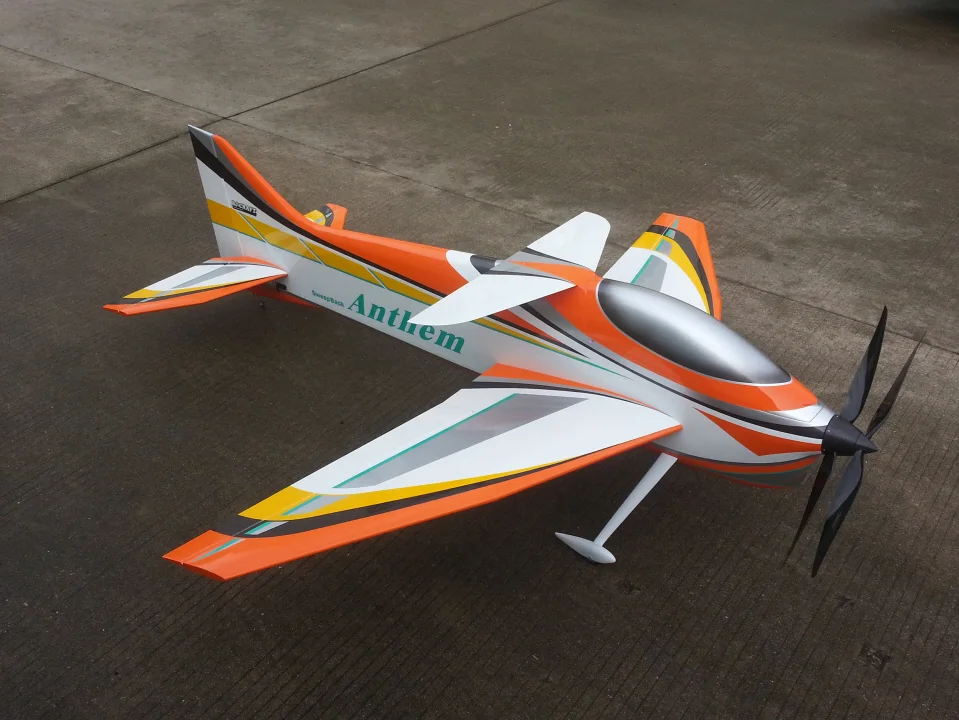

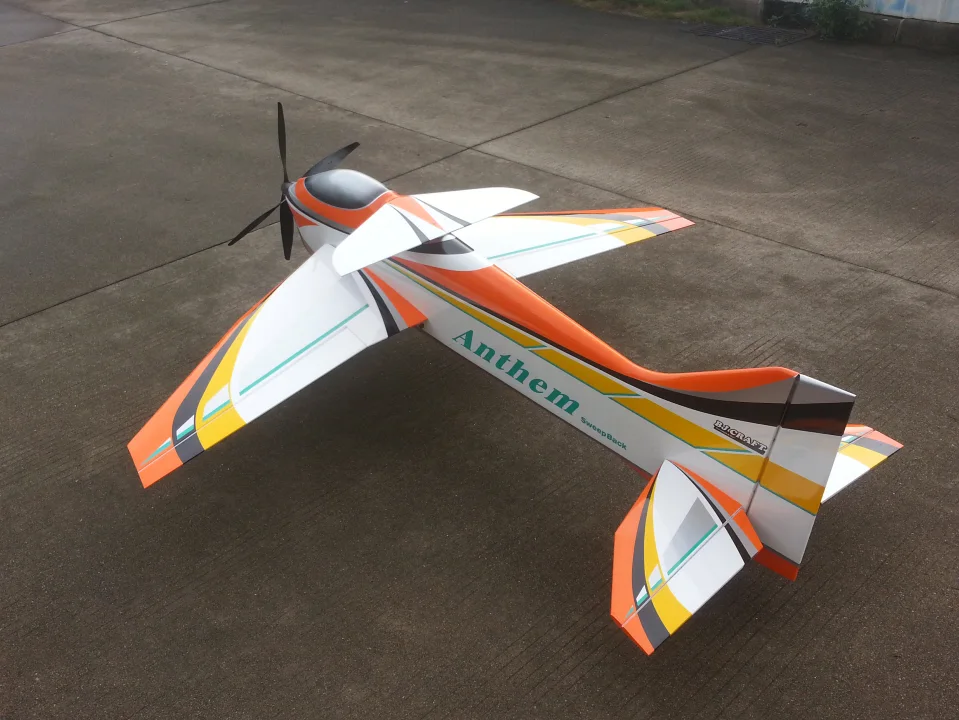

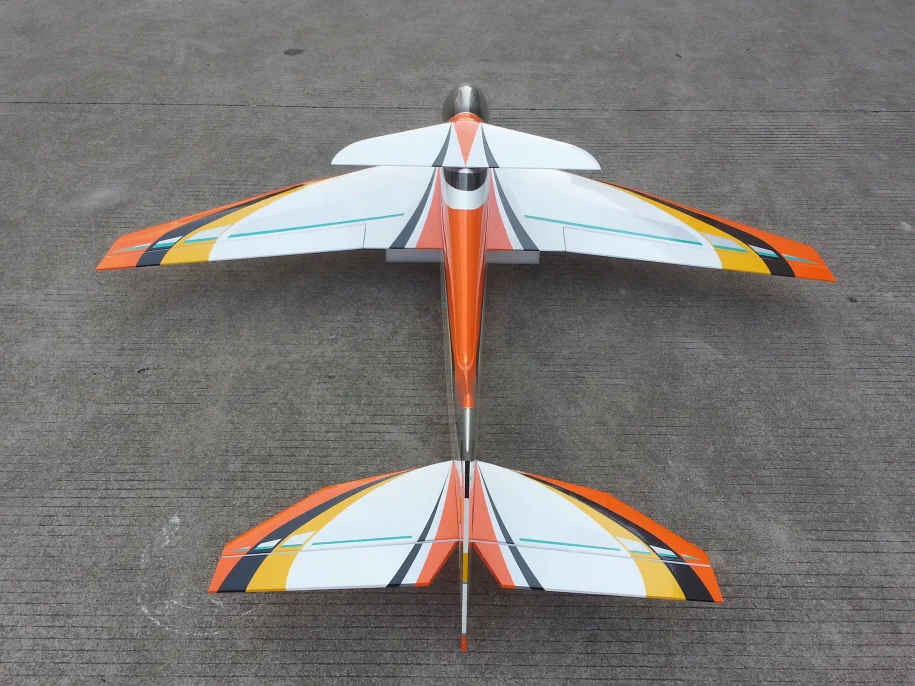

Gallery
